Elekta ONE® QA

Automated and integrated quality assurance for your Elekta Linac

Get in touch

Solutions for the full workflow

Workflow commissioning

Ensures consistent performance of Elekta Linacs

Pre-treatment QA

Verifies delivery before patient setup

Secondary Dose Check

Independent calculation to verify TPS calculations

Treatment delivery

Verifies dose output during beam-on

In-vivo transit check

Verifies dose delivered to patient

AQUA

Automated Quality Assurance

Machine QA data in a single location for fast, reliable insights and support

Standardization

Industry standard protocols driving secure QA workflow management to deliver consistent and high-quality care

Integration

Centralized machine QA database on the clinic network designed to manage and access data from anywhere at any time

Automation

From fully automated image-based tests with Elekta Linacs to fully automated data integration with IBA

Elekta ONE QA: AQUA—Comprehensive QA

All features are vendor neutral:

Data management

  • Events and status
  • User management
  • Communication
  • Scheduling
  • Dashboard
  • Device management
  • Approvals
  • Reports

QA tools

  • QA test library
  • Trending and analysis
  • Policy and procedure standardization
  • Third party device Integration

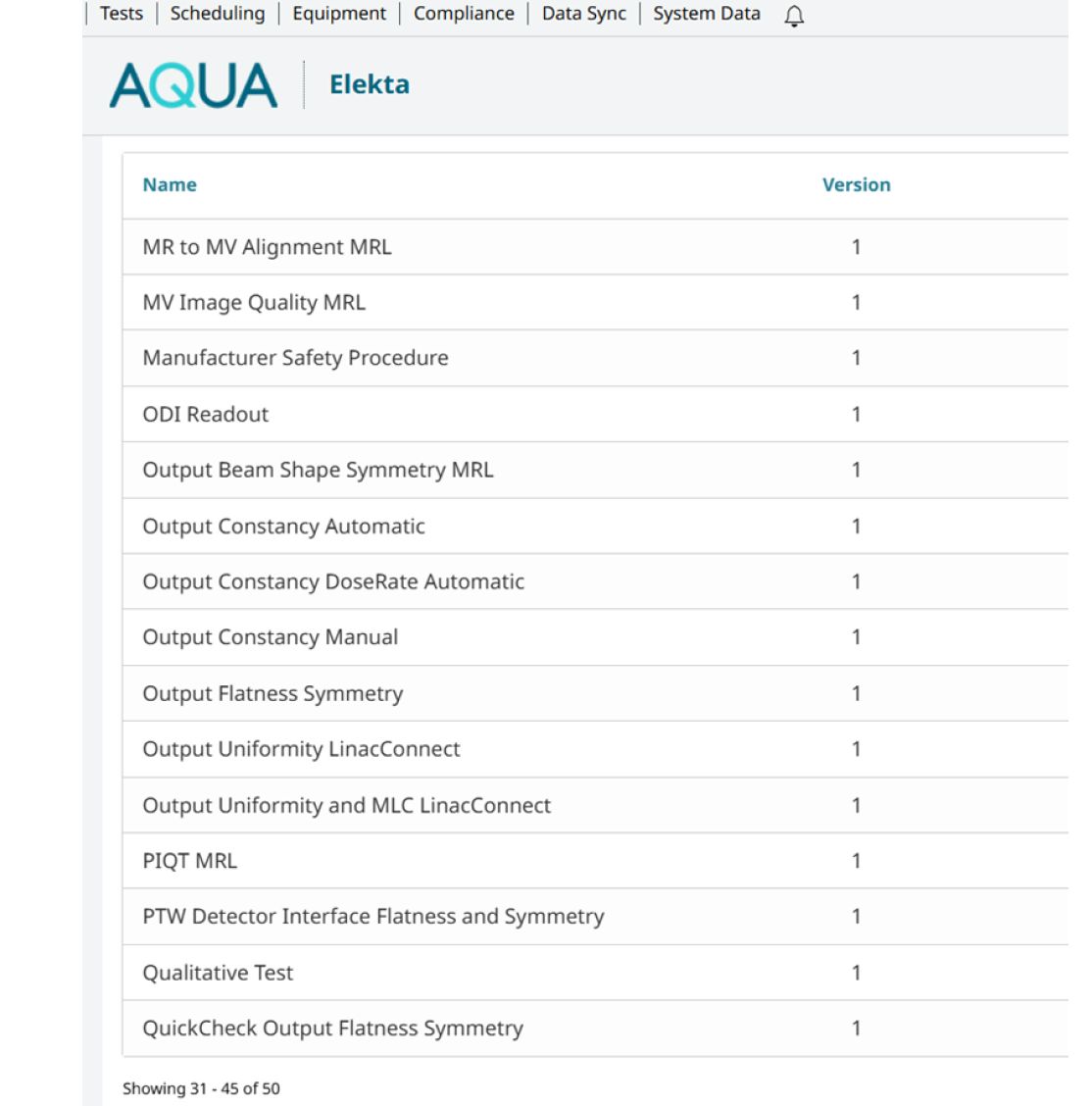

A Screenshot of Aqua Software

QA Test Library

Over 200 QA tests are standard in the test library, consisting of different levels of complexity and automation, including:

  • Safety checks
  • Flexible manual entry form-based tests
  • Integrated and automated third-party QA devices to control the device or import test results
  • EPID-based tests for Linacs
    • 6 LinacConnect fully-automated tests (via iCOM and iViewGT)
    • 4 MR-Linac image-based tests
  • Image Performance analysis test for CT datasets—supporting multiple Catphan phantoms

Preconfigured industry protocols:

  • TG-142, TG-51,
  • Elekta recommended QA tests daily – Conventional Linacs, Elekta Unity

Elekta Evo Machine QA with AQUA

Proven precision, by design

With Evo Machine QA, physicists have the power to choose their preferred techniques to verify Evo’s proven precision, including utilizing AQUA’s unique group of image-based tests.

AQUA fully automated Machine QA LinacConnect tests includes:

  • 2 MLC Leaf and Jaw test (Agility collimator)
  • 2 Output Uniformity tests
  • 3 Isocenter tests (couch and gantry)
Clinitians Standing Talking Around Elekta Evo

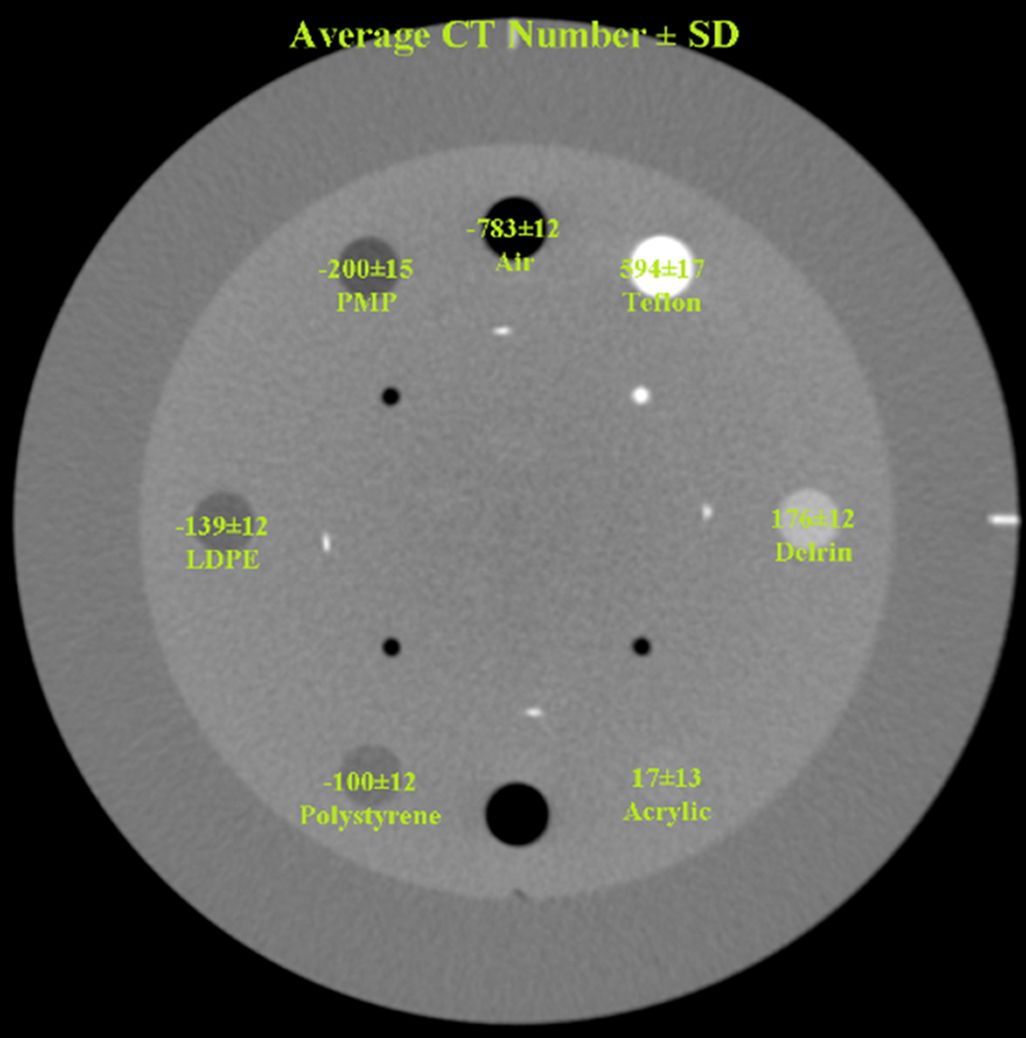

Iris Qa With Aqua

Iris® imaging QA with AQUA

Empowered to choose

With Iris QA, physicists are able to choose their preferred QA strategy.

AQUA Imaging QA includes:

  • CBCT kV QA
  • Automated analysis of CBCT kV QA data
  • Multiple CATPhan models supported

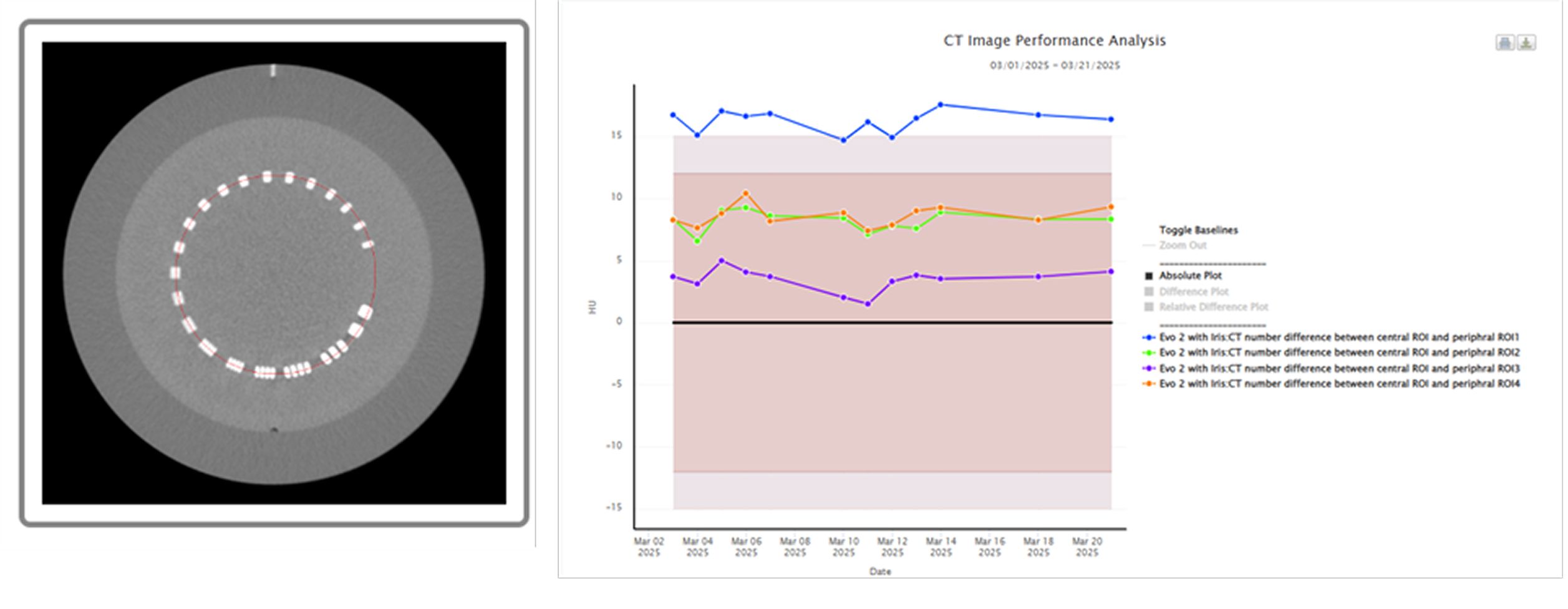

Ct Image Performance Analysis Graph

ThinkQA Suite

Automated Quality Assurance

Manufactured by Dosisoft

Secondary Dose Check

Ensures accurate radiation delivery

EPID-based pretreatment check

Optimize treatment planning and verification

EPID-based In-vivo Dosimetry

Evaluates patient dose during treatment

Secondary Dose Check

Fast, reliable and independent 3D dose calculation for adaptive radiotherapy workflows.

Using a fully independent and innovative Collapsed Cone Convolution algorithm, ThinkQA Secondary Dose Check is designed to verify if the dose distribution calculated by a Treatment Planning System (TPS) for External Beam Radiation Therapy (EBRT) is consistent with treatment plan parameters. It helps Radiation Therapy centers meet reporting and reimbursement needs, ensure compliance in plan quality and gain confidence in patient safety.

Compatible with linear accelerators, it has been specifically adapted to MR-Linac, supporting beam specificities and adaptive workflow.

Through its ergonomic web dashboard, the user can not only access full dose matrix analysis including automatic volume indicators, and Gamma Passing Rates, but also receive automatic report and perform approval action.

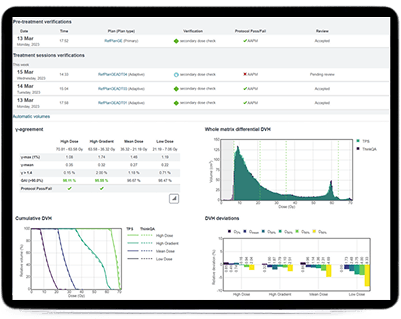

Think Qa Secondary Dose Check Used on a Tablet

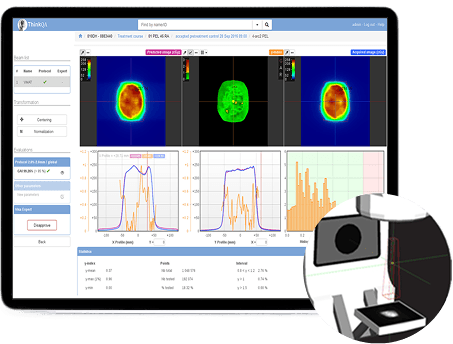

Electronic Portal Imaging Device

EPID-based pretreatment check

Providing fast and automated pretreatment beam check without phantom or hybrid plan.

Based on the use of EPID (Electronic Portal Imaging Device), EPID-based pretreatment check is a web-based software to check external radiotherapy beams in pretreatment conditions.

EPID-based pretreatment check automatically compares two images expressed in terms of absolute dose: 1) a predicted dose map calculated from the RT Plan; 2) a measured image acquired by an EPID and converted into a dose-to-water map.

Prior to the patient’s first fraction, it ensures the right dose delivery, correct MLC and machine functioning and integrity of data transfer.

It drastically reduces the time spent on beam controls compared to phantom-based methods, making the systematic pretreatment controls now possible!

EPID-based In-vivo Dosimetry

Monitoring dose delivery with in vivo dosimetry.

Based on EPID (Electronic Portal Imaging Device), EPID-based In-vivo Dosimetry enables health professionals to catch a patient’s dose deviation during their treatment course and to identify exactly the root causes of errors.

Equipped with 3D views and DVH graphics, EPID-based In-vivo Dosimetry offers an in situ display that lets you visualize differences between a predicted dose and a reconstructed dose, according to a 3D patient anatomy analysis.

It also alerts you in case of deviations, anytime, anywhere, within your internal hospital network.

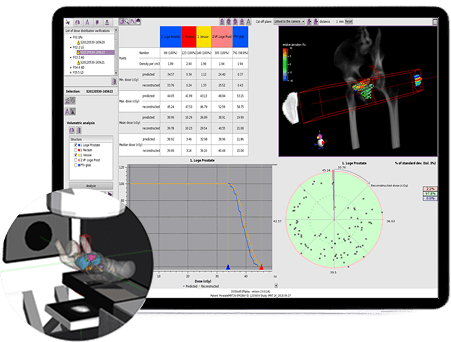

Epid Based in Vivo Dosimetry

Integral Quality Monitor—IQM

  • Integrate QA into your clinical workflow and monitor every step of your treatment delivery process*
  • Automatically verify every treatment technique with highest accuracy
  • Increase patient safety through real-time error detection
  • Optimize treatment capacity and significantly reduce verification time and resources
  • Pre-service appeals
  • Provide a real-time solution for adaptive treatment techniques

* Product compatible with CT-Linacs

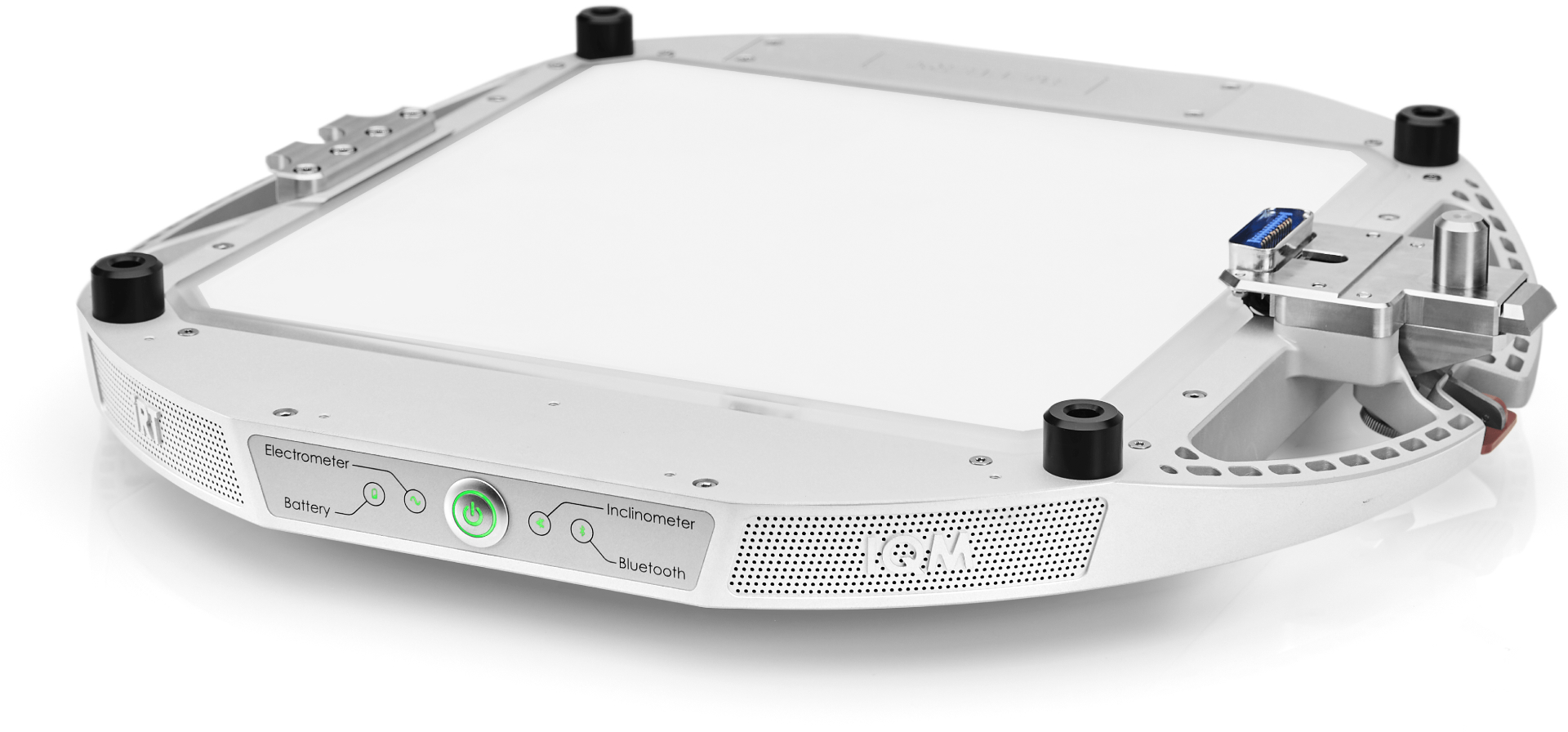

IQM

Manufactured by iRT

Real-time verification

Real-time results during the patient treatment

IQM verifies the treatment accuracy at every control point. IQM ensures that every treatment parameter is delivered exactly as planned;

  • MU and Energy
  • Beam segment location
  • Beam segment size or shape
  • Gantry and collimator direction

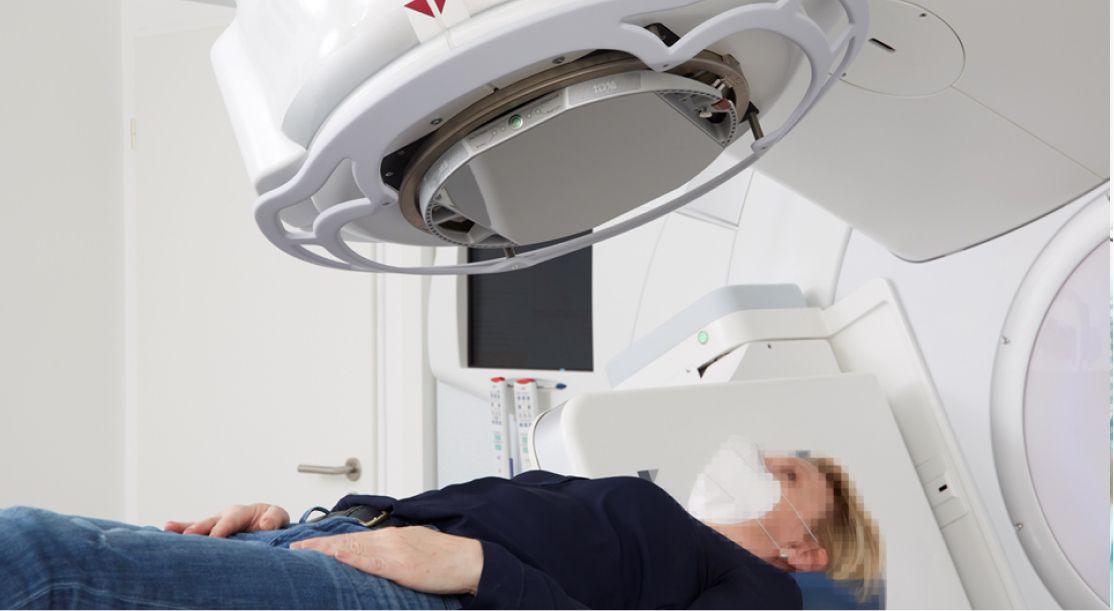

Patient Being Treated With Elekta Evo
