Leksell Vantage X-ray table fixation
*The products in this catalog may not be cleared for sales in all
markets.
Please contact your Elekta sales representative for
more information.
Article No: 1136512
The X-ray table fixation is used together with the Leksell® Vantage Head Frame, the Leksell®
Vantage X-Ray Fiducial Box and the Leksell® Vantage Frame Holder for fixation of the patient´s

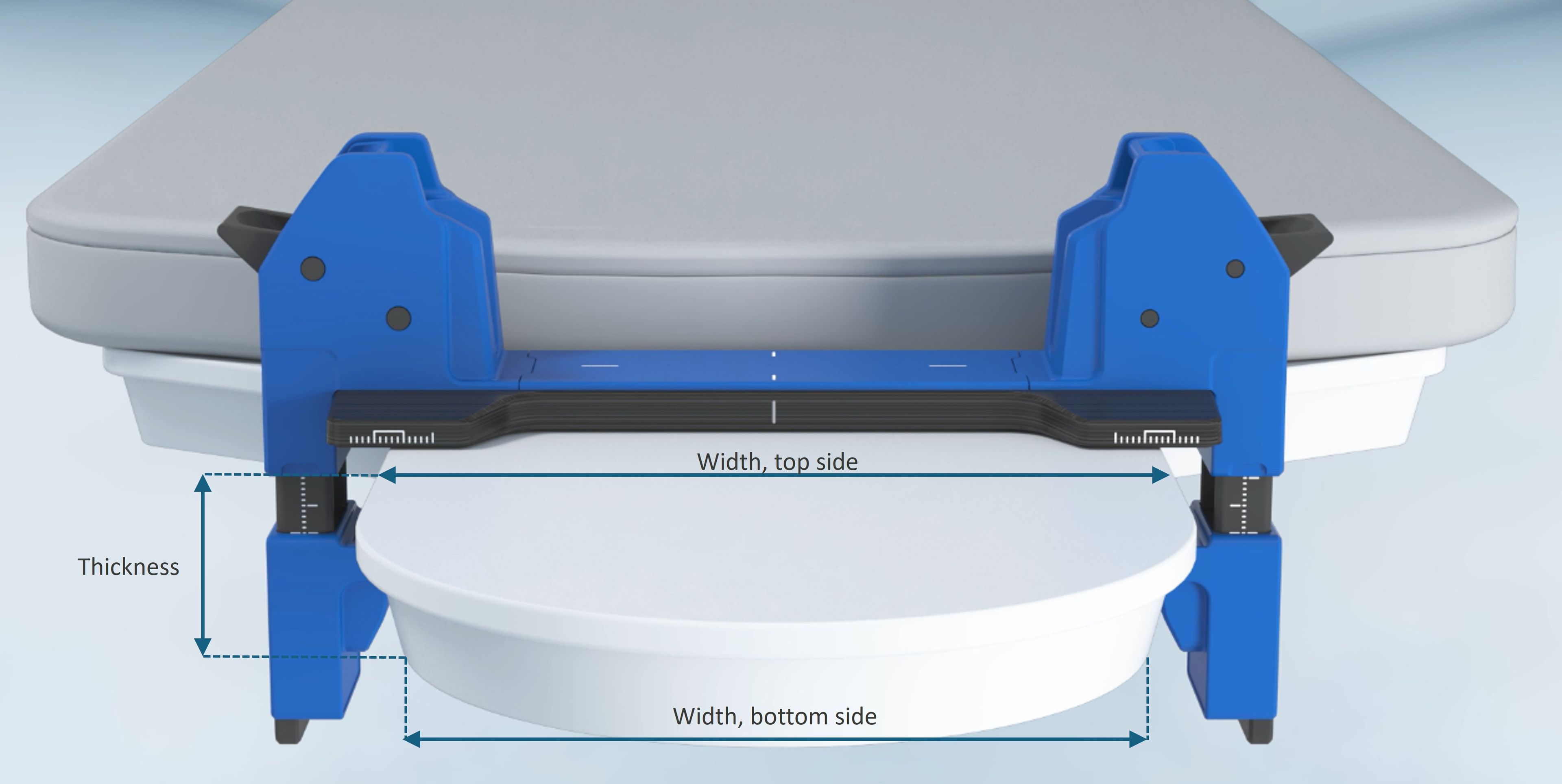

head during X-ray imaging. The Leksell® Vantage X-Ray Table Fixation is intended to be fitted to the headrest end of an X-ray
imaging table with the following dimensions:
Width, top side: 180 – 229 mm
Width, bottom side: 85 – 229 mm
Thickness: 18 – 45 mm
The outer areas of the imaging table may have other dimensions as long as the
table fixation can be firmly secured.
