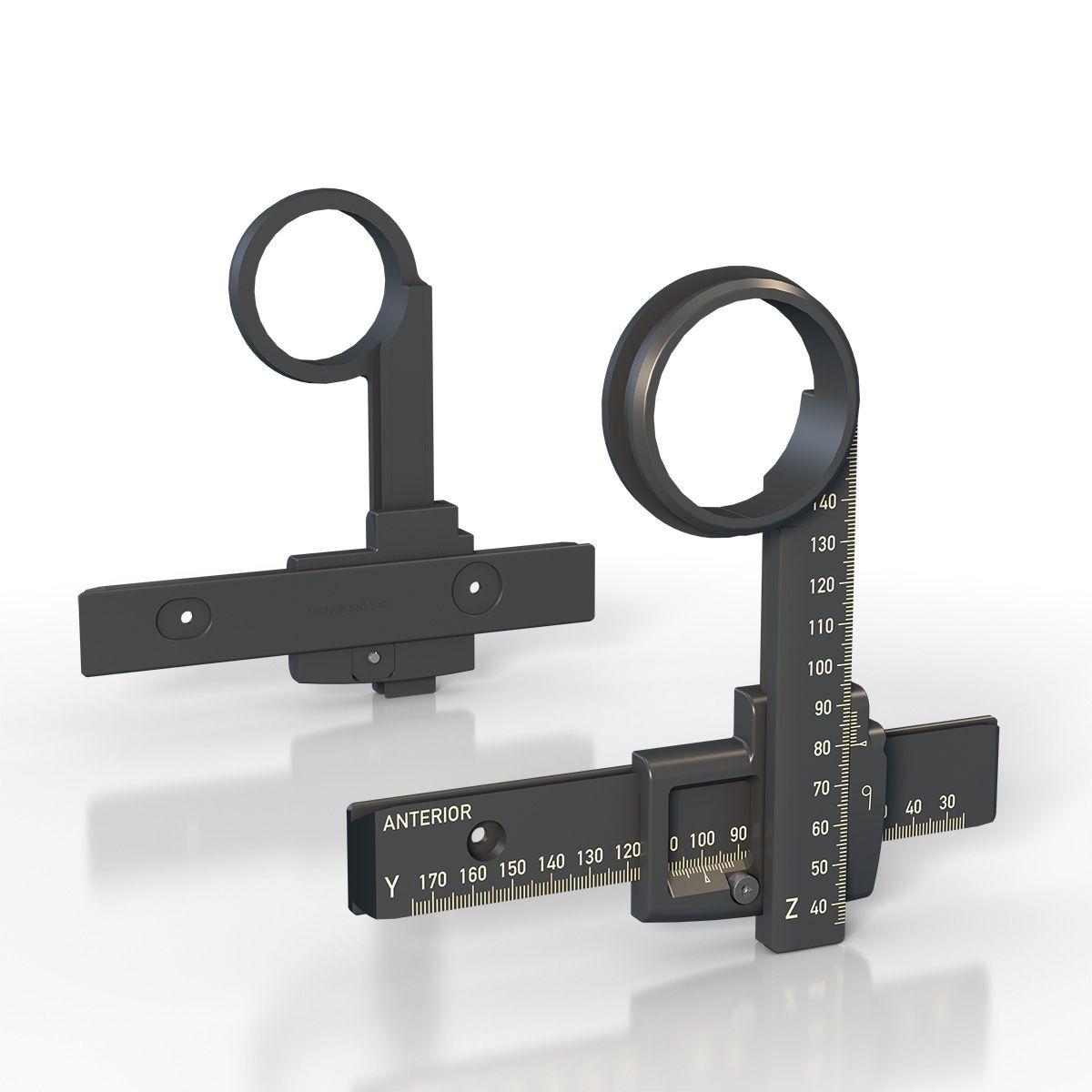

Leksell® Vantage™ Arc System is designed to allow the neurosurgeon to select any desired trajectory to the predetermined brain target. Utilizing the proven Leksell Coordinate System and Center-of-Arc principle in an innovative click-on design and easy sterile draping together with Leksell® Vantage™ Head Frame. The arc assembly can be attached in a lateral-right or lateral-left position.

The arc system's purpose is to set planned target coordinates, trajectory and guide the instruments used during neurosurgery. It is used for diagnostic and therapeutic procedures, such as functional interventions and minimal invasive neurosurgical procedures within its intended use.

Included components

Part No. Description  Quantity
1051623  Y SCALE LEFT    1
1051635  Y SCALE RIGHT    1
1051632  SLIDE RIGHT    1
1051631   SLIDE LEFT    1
1054956  SUPPORT ARC COMPLETE    1
1054958  ARC COMPLETE    1
1003329  KNOB    5
1055070  PEEK SCREW SHORT    2
1051804   LOCKING PIECE FOR Y-SLIDE    2
1051838   SCREW MLC6S M5x20 A2, ADJUSTED    4
1114597    SCREW MC6S M4, POLISHED TIP    4
1051620   STOP SLIDE ASSEMBLY    1
1051619    GUIDE SLIDE ASSEMBLY    1
1051788    ARC SUPPORT RIGHT    1
1051796    ARC SUPPORT LEFT    1
1102873    CARRIER COMPLETE    1
1536894   Leksell Vantage Key  1

This product is the same as product 1040048 registered under the Medical Device Regulation.
